New Arrival PV Panel Transparency Cdte Thin Film Transparent Solar Panels

1 / 5

New Arrival PV Panel Transparency Cdte Thin Film Transparent Solar Panels

Customization:	Available
Material:	Thin Film, Cdte
Application:	Industrial

Send Inquiry

Product Description

Basic Information

Model NO.

SF-TFSP28

Product Name

Thin Film Solar Panel

Color

Customized Color

Feature

Light Weight

Weight

11.8kg

Cell Type

Cadmium Telluride

Area

0.72m2

Thickness

7mm

Warranty

10 Years

Certification

ISO, CE

Production Capacity

100,000 Watts / Per Week

Specification

1200*600*7mm

Product Description

Core Features:

Generates electricity even at low light levels using second generation solar technology.

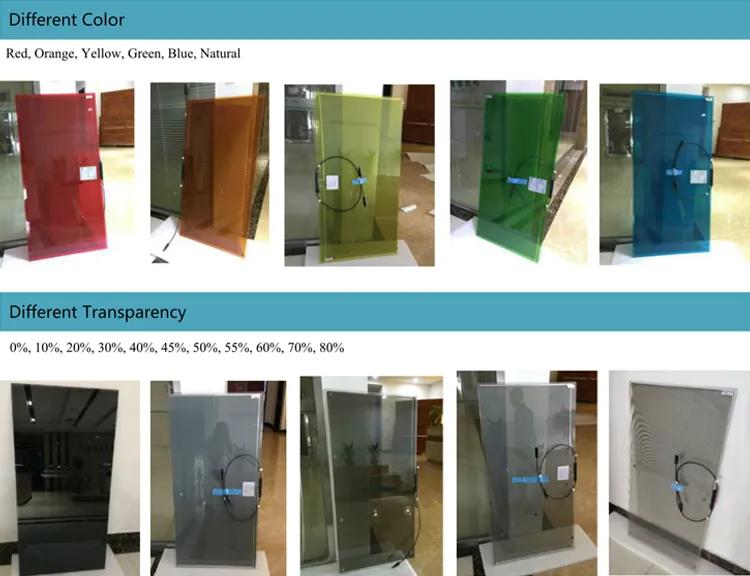

Available in transparencies up to 50% with efficiency up to 12%.
Highly aesthetic finish suitable for diverse architectural applications.
Less position sensitive; bespoke sizing and single/double glazed options available.

Technical Details

Item	Transparency	Size (mm)	Weight	Pmax	Voc	Isc	Vmpp	Impp
ST1-15w	80%	12006007	12Kg	15w	111V	0.23A	85.5V	0.18A
ST1-23w	70%	12006007	12Kg	23w	114V	0.31A	87.8V	0.26A
ST1-38w	50%	12006007	12Kg	38w	114V	0.51A	87.8V	0.43A
ST1-52w	30%	12006007	12Kg	52w	114V	0.72A	87.8V	0.59A
SF1-90w	No	12006006.8	11.8Kg	90w	122.0V	1.06A	96V	0.94A

Production & Logistics

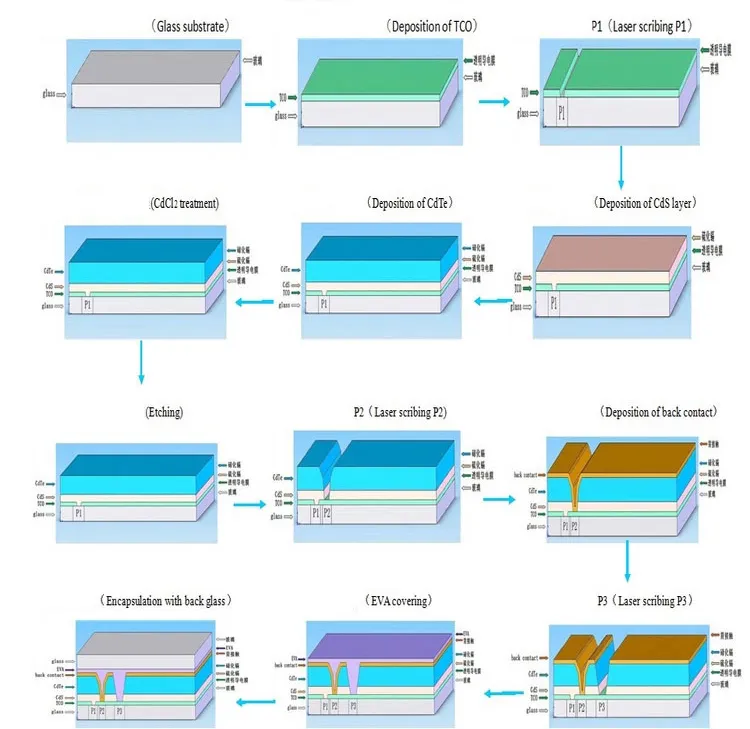

Production Process

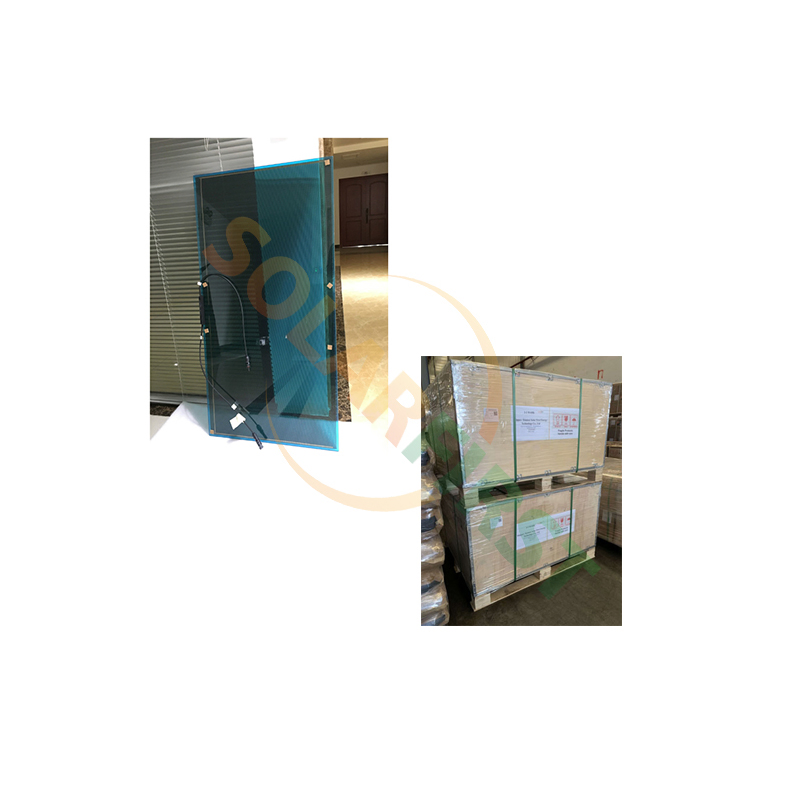

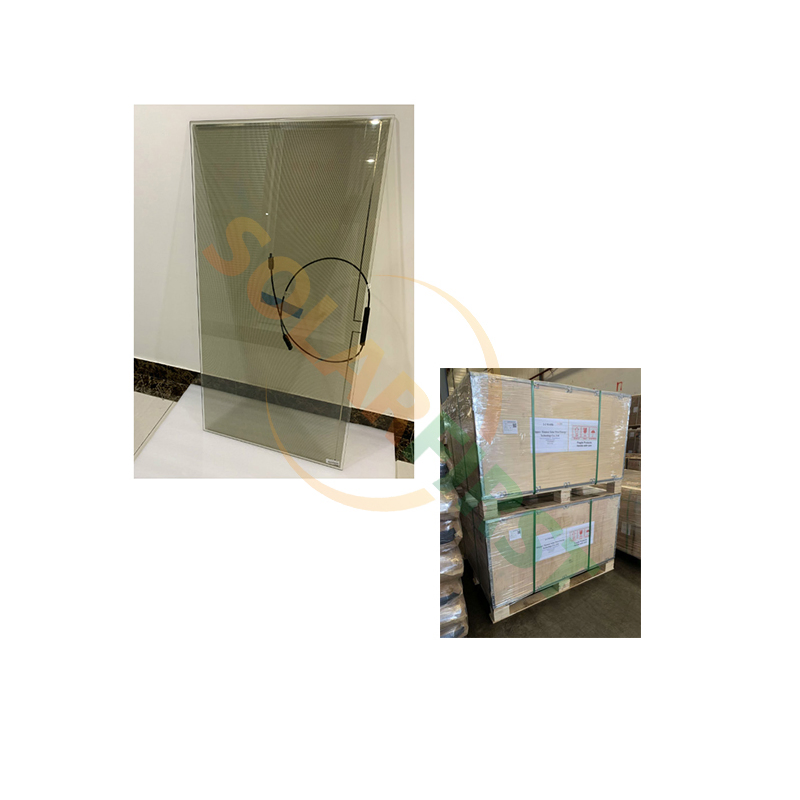

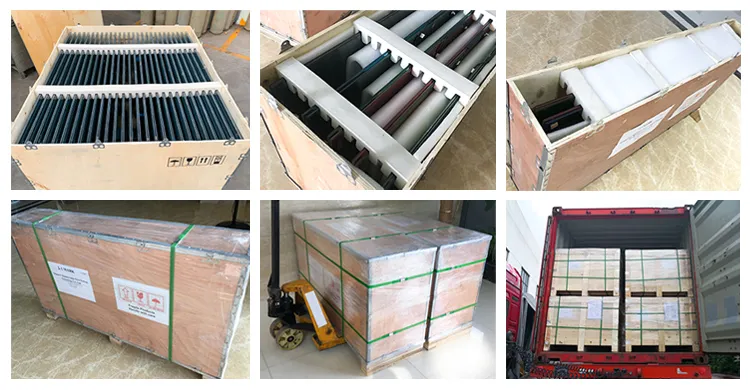

Packaging & Shipping

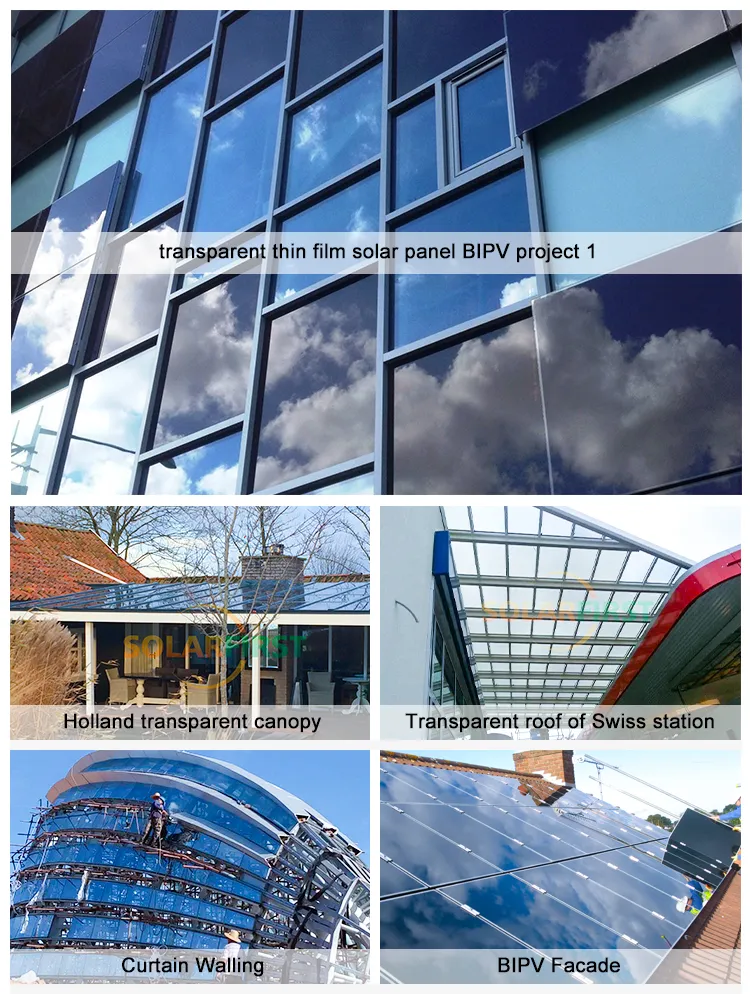

Projects & Exhibitions

Frequently Asked Questions

What are the main advantages of thin film solar panels?

Thin film solar panels are a next-generation technology that can produce electricity even in dim or low light conditions, unlike traditional crystalline panels.

Where can these panels be applied?

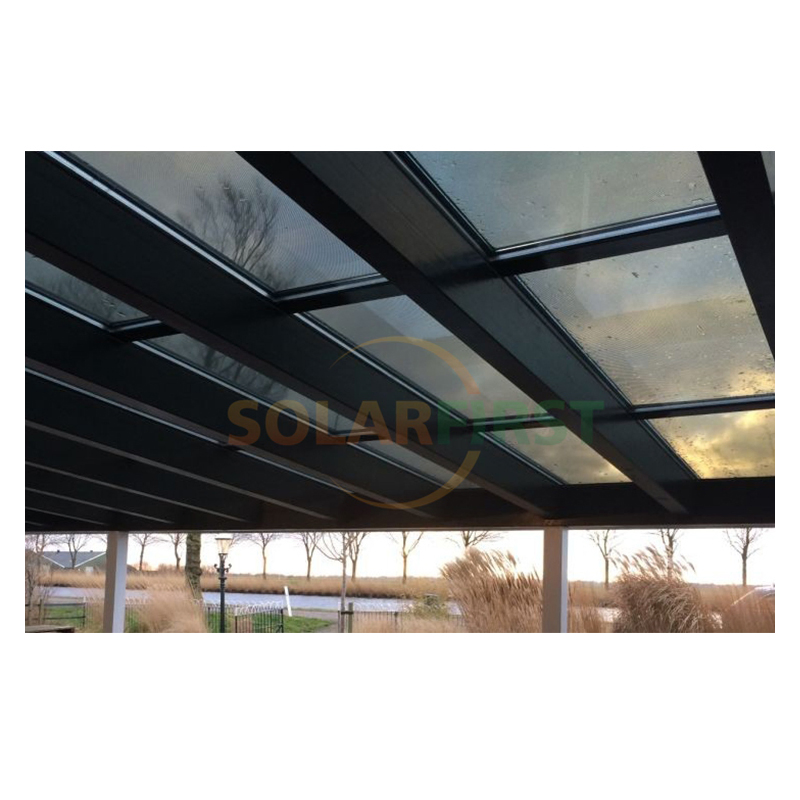

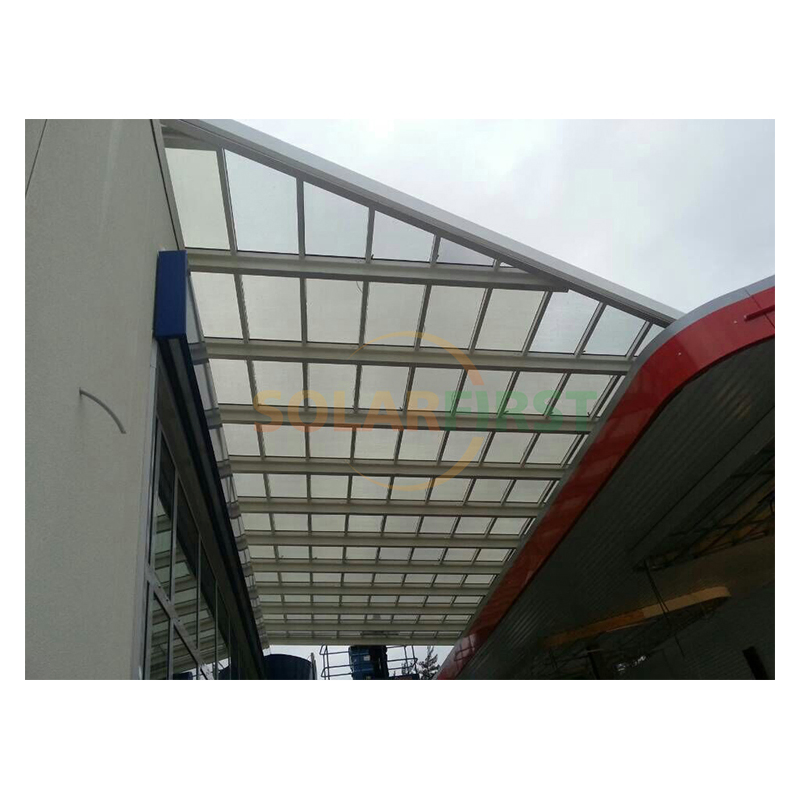

They are primarily used in BIPV (Building Integrated Photovoltaics) projects, as well as specialized roof mounting systems where aesthetics and transparency are required.

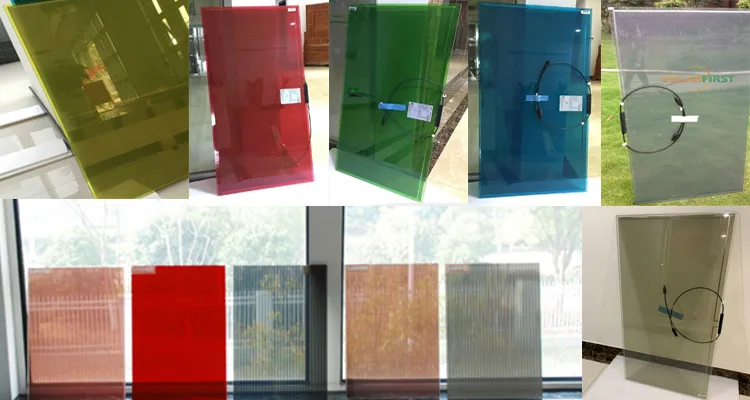

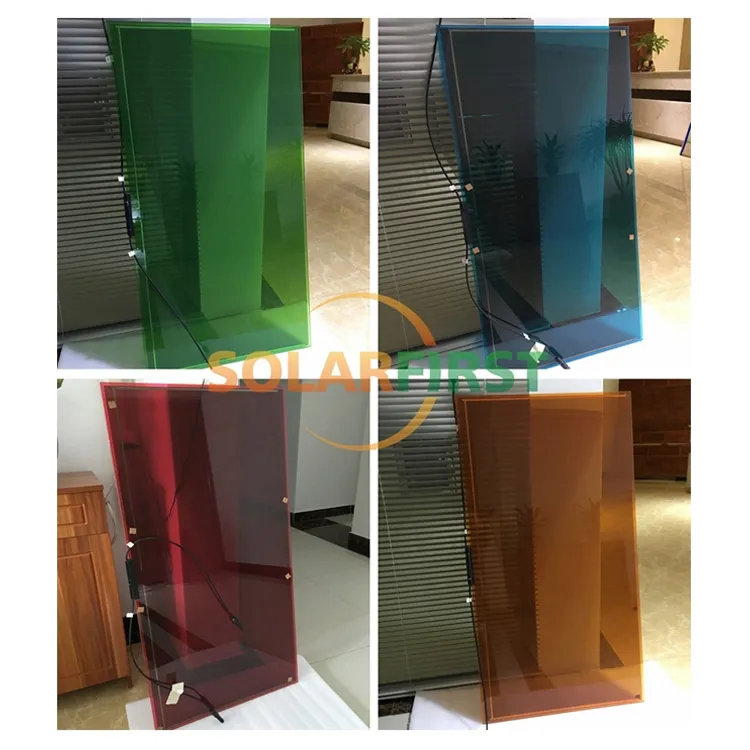

Can the size and color of the panels be customized?

Yes. While our standard size is 1200*600*7mm, we can customize dimensions and colors to meet specific architectural demands.

Are you a direct manufacturer?

Yes, we are a dedicated manufacturer of solar products and welcome visits to our production facilities.

What certifications do these solar panels hold?

Our thin film solar panels are certified under ISO and CE standards, ensuring international quality and safety compliance.

What is the typical thickness and weight of the panels?

The standard thickness is 7mm and the weight is approximately 11.8kg to 12kg, making them a lightweight option for building integration.
