Lumiax 10A 20A 30A 12V 24V MPPT Solar Charge Controller 55V Bluetooth RS485

1 / 5

Lumiax 10A 20A 30A 12V 24V MPPT Solar Charge Controller 55V Bluetooth RS485

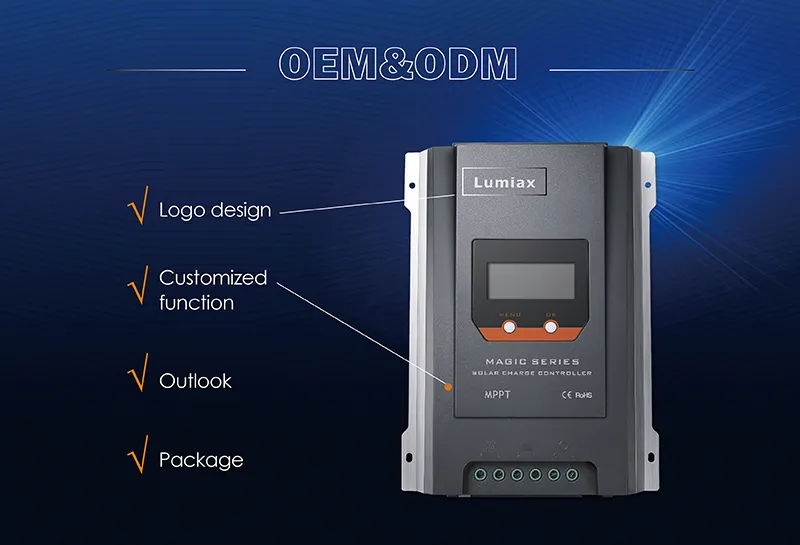

Customization:	Available
After-sales Service:	Installation and Debugging Guide
Warranty:	1

Send Inquiry

Product Description

Basic Info.

Model NO.

MT10/20/30

Condition

New

Certification

ISO, CE

Application

Solar System Controller, Charger Controller, Lighting Controller, Voltage Controller

Rated Voltage

12V/24V Automatical Recognization

Max Solar Voltage

35V/45V/55V/50V/100V/95V

Display

LCD

Charge Way

MPPT, Boost, Equalization, Float

Max Tracking Efficiency

99.9%

Max Charge Conversion

98%

Battery Type

Liquid, Gel, AGM, Lithium

Protection Degree

IP32

Max Input Power

130W-1040W

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 10.00cm

Gross Weight

2.000kg

Lead Time

31 days (1 - 2000 Pieces)

Product Features

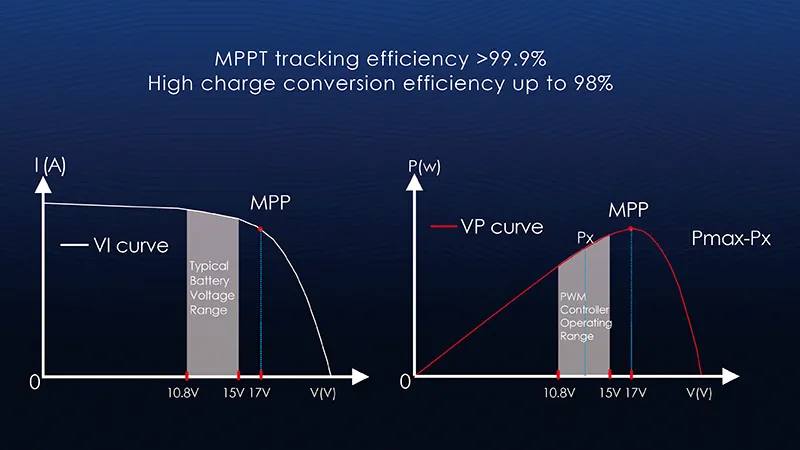

Innovative MPPT technology, tracking efficiency 99.9%, conversion efficiency up to 97%

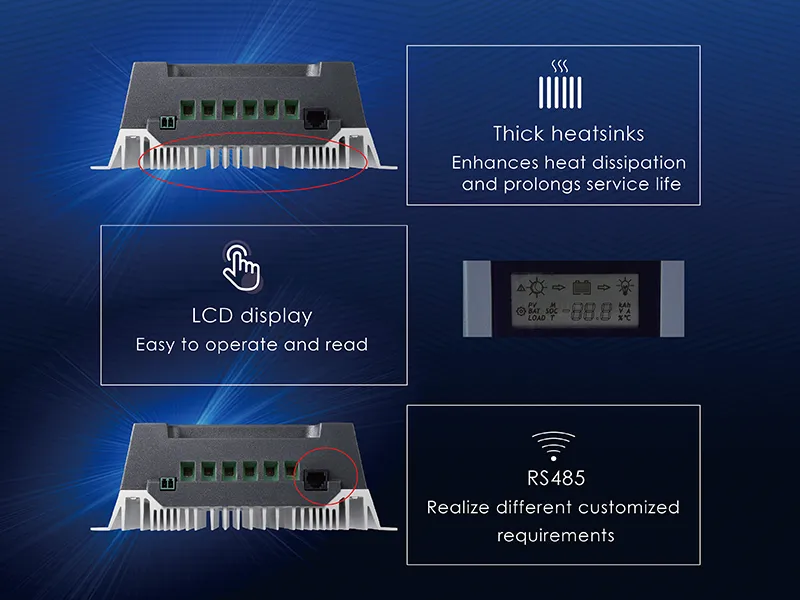

Real-time display the operational data and working status of the controller in digital, graphic and textual forms by a large LCD
Many choices of battery type, working mode and protection
Two navigation buttons, easy to implement various operations
Clear readable display of charge/discharge, battery and error description
12V/24V automatic recognition, temperature compensation, Perfect EMC design
Four stage charge way: MPPT, boost, equal, float

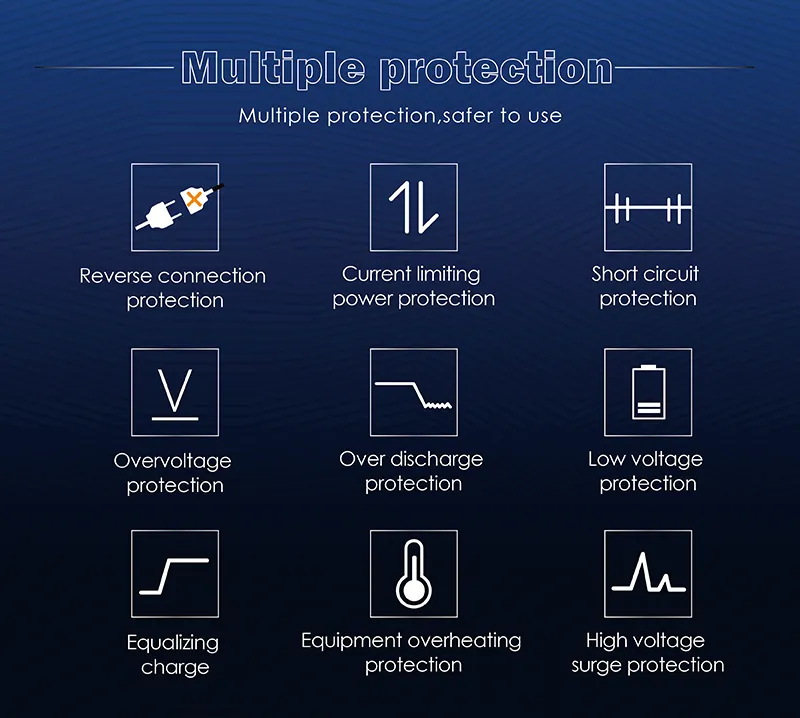

Full automatic electronic protect function

Product Parameters

Item	MT2010	MT3010	MT2075	MT3075	MT4010
Max Charging Current	20A	30A	20A	30A	40A
System Voltage	12V/24V automatical recognization
Battery Type	Gel, AGM, Liquid, Lithium (default: Gel)
MPPT Tracking Efficiency	>99.9%
Max Charge Conversion	98.0%
Max Volt on PV	100V	100V	55V	55V	100V
Protection Degree	IP32

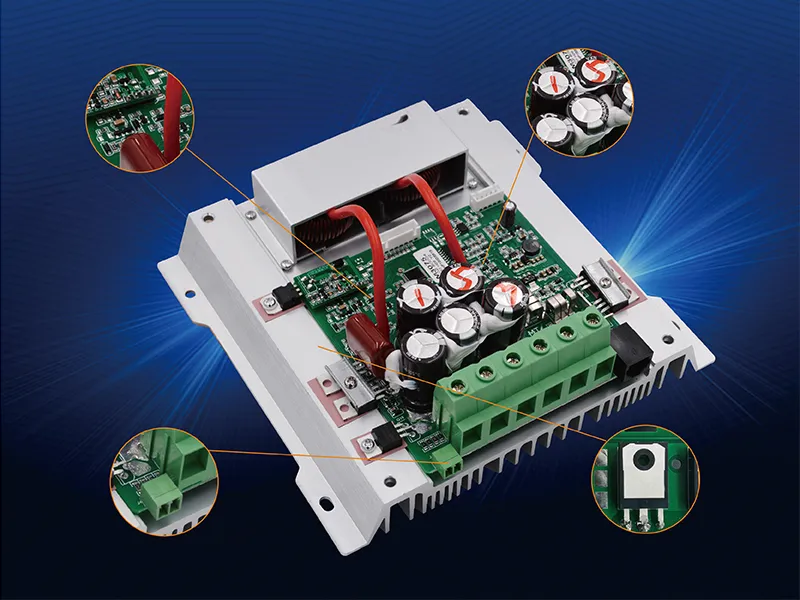

Product Details

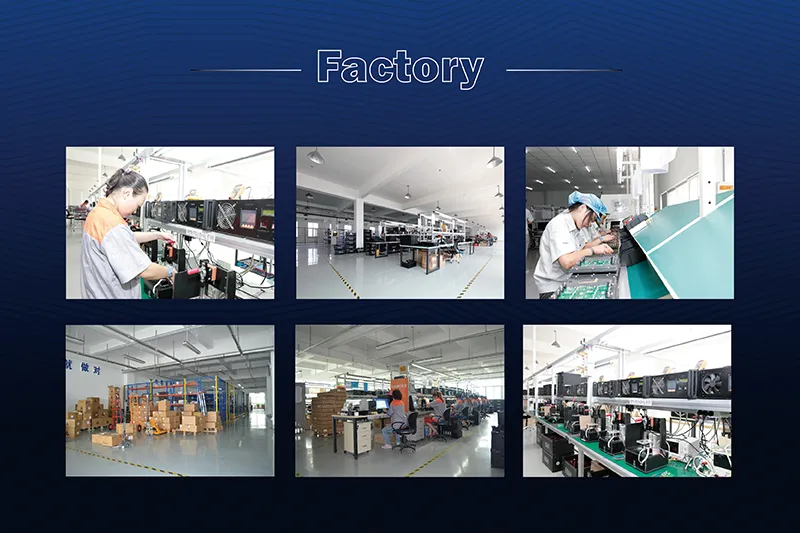

Certifications & Factory

Frequently Asked Questions

What is the maximum tracking efficiency of this MPPT controller?

The controller features innovative MPPT technology with a tracking efficiency of up to 99.9% and a conversion efficiency of up to 97%.

Does this solar controller support lithium batteries?

Yes, it supports multiple battery types including Liquid, Gel, AGM, and Lithium batteries.

Can the controller automatically recognize the system voltage?

Yes, it features 12V/24V automatic recognition for seamless integration into your solar power system.

What information is shown on the LCD display?

The large LCD displays real-time operational data, working status, charge/discharge details, and any error descriptions in digital and graphic forms.

What protection functions are included?

It includes full automatic electronic protection functions, including overcharge protection and temperature compensation for various charging stages.

Is there a way to monitor the controller remotely?

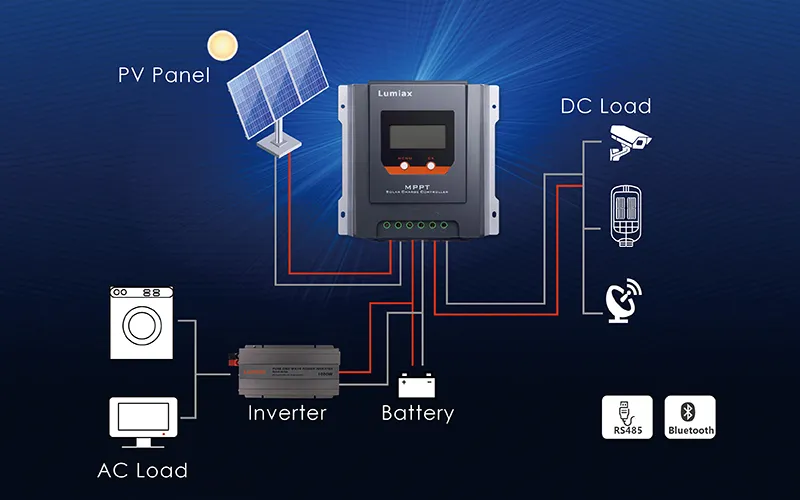

The controller supports RS485 communication via an RJ11 interface and has optional IoT/Bluetooth modules for remote monitoring.
