Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

1 / 5

Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.SUB-D

Nature of Source FlowActive Inverter

PhaseSingle

Output Power>1000W

CertificationCE, ISO9001

TypeDC/AC Inverters

Power SourceSolar Power

Circuit TopologiesHalf-Bridge Type

Nature of Wave StringSine Wave Inverter

Product NameCharge Controller Solar Hybrid off Inverter

HS Code8504403090

Production Capacity60,000PCS/Year

Off Grid Hybrid Solar Inverter (SUB-D 3-11KW)

🚀 KEY FEATURES

High Frequency off grid hybrid solar inverter, PF=1
3 in 1 design: Power Inverter + MPPT controller + Grid Charger
Working without battery during daytime
Support lithium activation wake-up and cold start function
Auto restart while AC is recovering
Intelligent power supply mode: distribution of solar panel/mains/battery power shares
Adjustable Charge Current & Voltage for different battery types (Lead acid / Lithium)

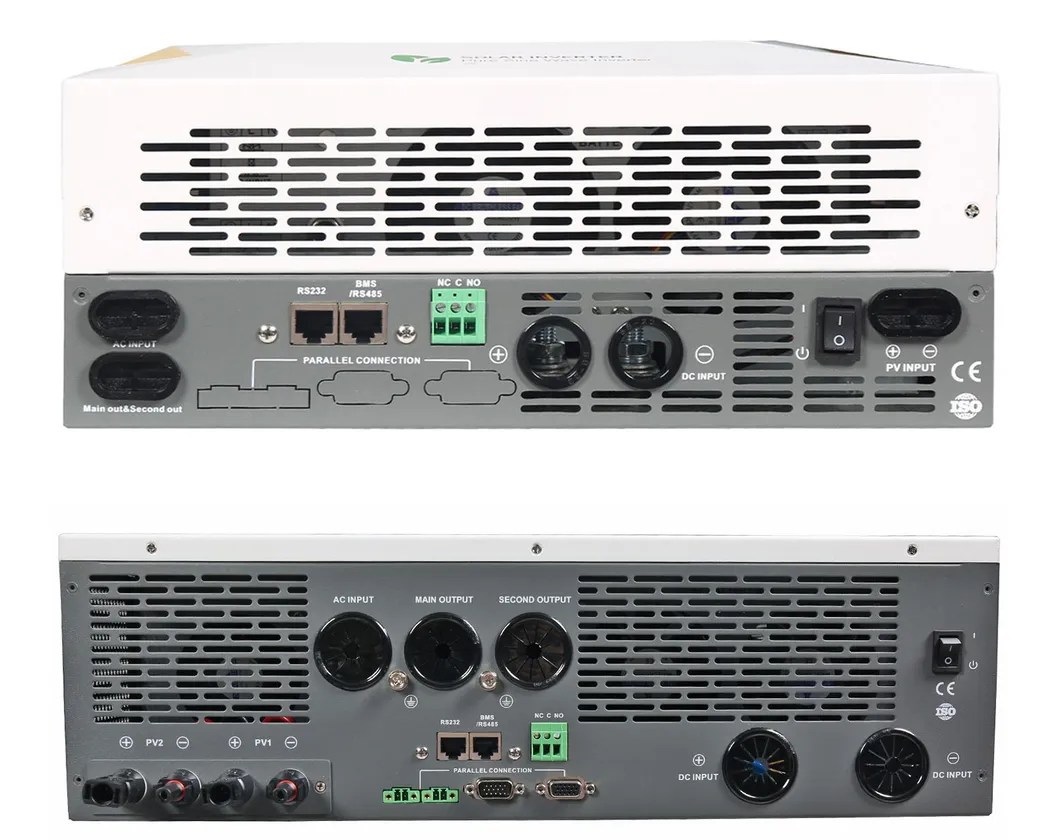

RS232, BMS/RS485, Dry Contact Communication
WiFi Plug or GPRS option for Mobile App
6.2KW/11KW models support parallel function (up to 9 units)
Wide MPPT range: 40-500VDC / 120-500VDC
Pure sine wave output suitable for various loads
Full protection: overload, over temperature, short-circuit, battery low/reverse

📋 TECHNICAL SPECIFICATIONS

ITEM	Model	SUB-D-E3024	SUB-D-3624	SUB-D-6248	SUB-D-11048	SUB-D-6248GP	SUB-D-11048GP
INPUT	Rated Power	3KW	3.6KW	6.2KW	11KW	6.2KW	11KW
INPUT	Voltage	220/230/240VAC
OUTPUT	Efficiency	97% (PV to INV Peak)
OUTPUT	Waveform	Pure sine wave
BATTERY	Voltage	24 VDC		48 VDC
SOLAR	MPPT Range	50 ~ 500 VDC	150 ~ 500 VDC
SOLAR	Max PV Array	3KW	4.2KW	6.2KW	2*5.5KW	6.2KW	2*5.5KW

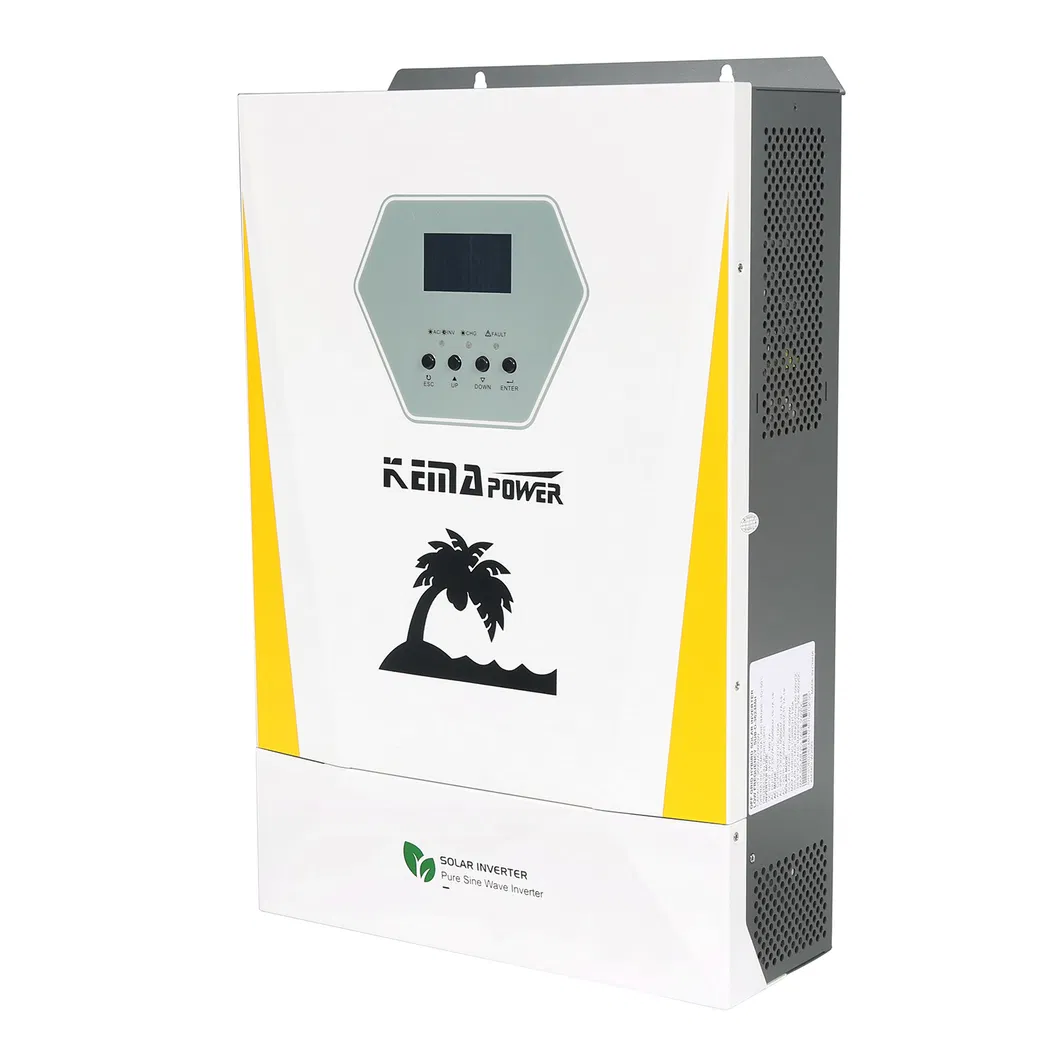

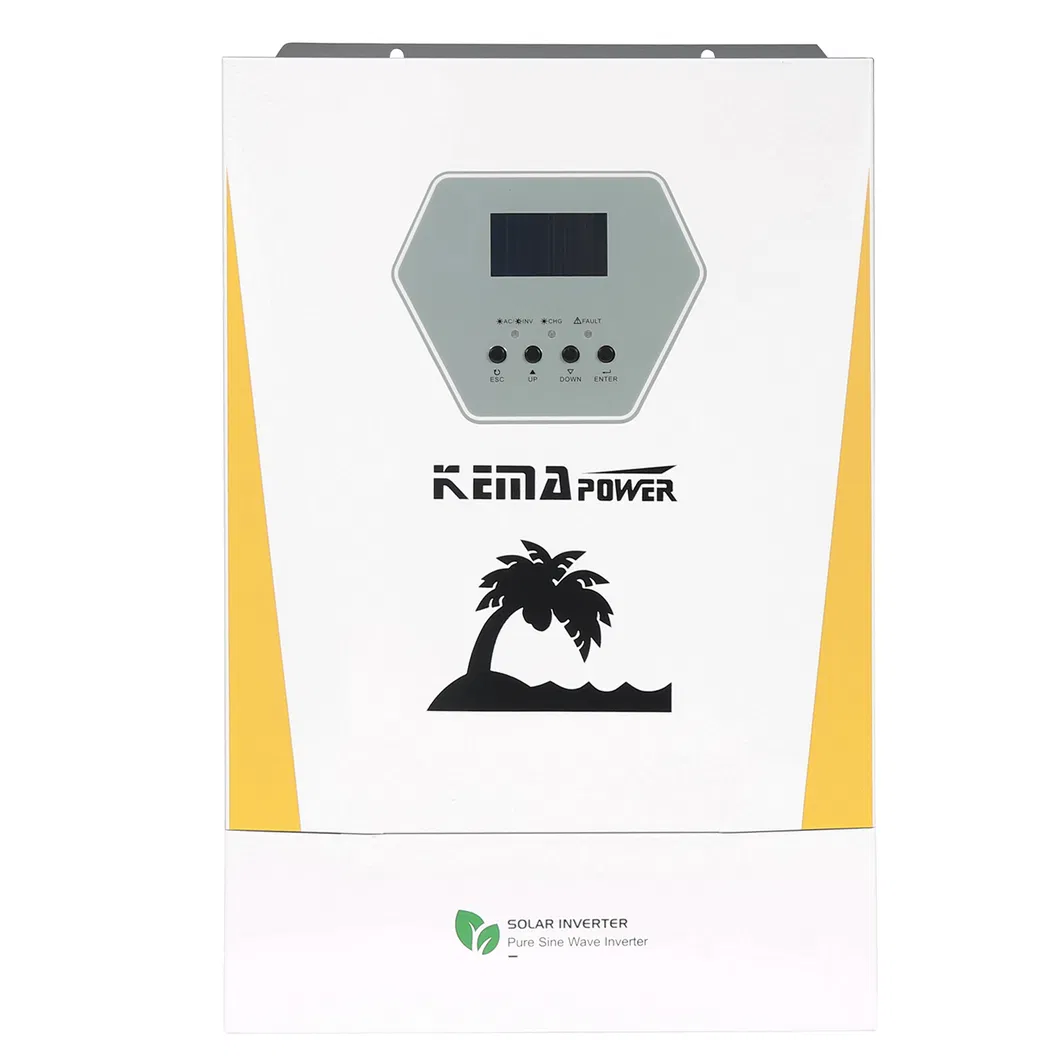

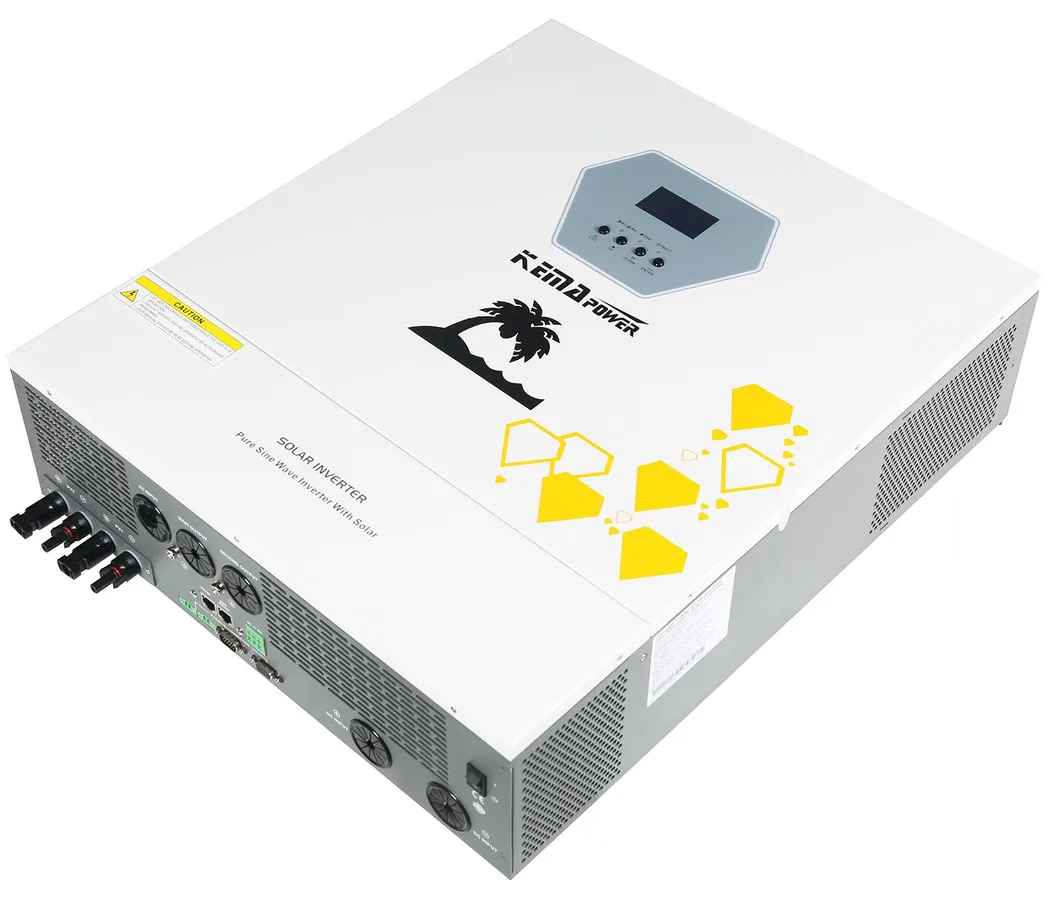

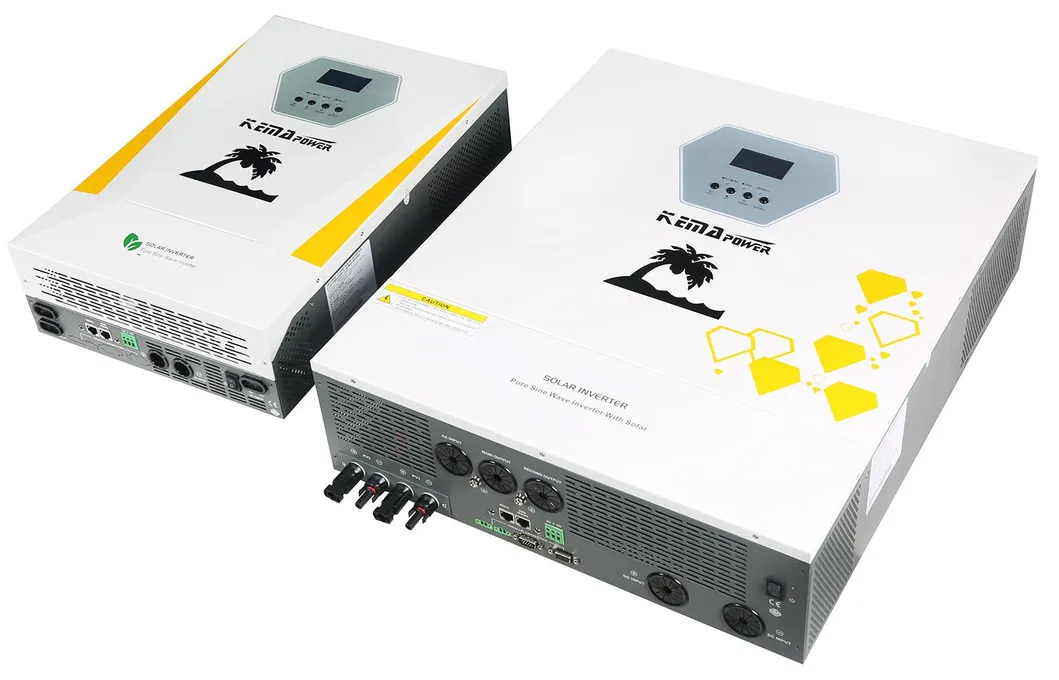

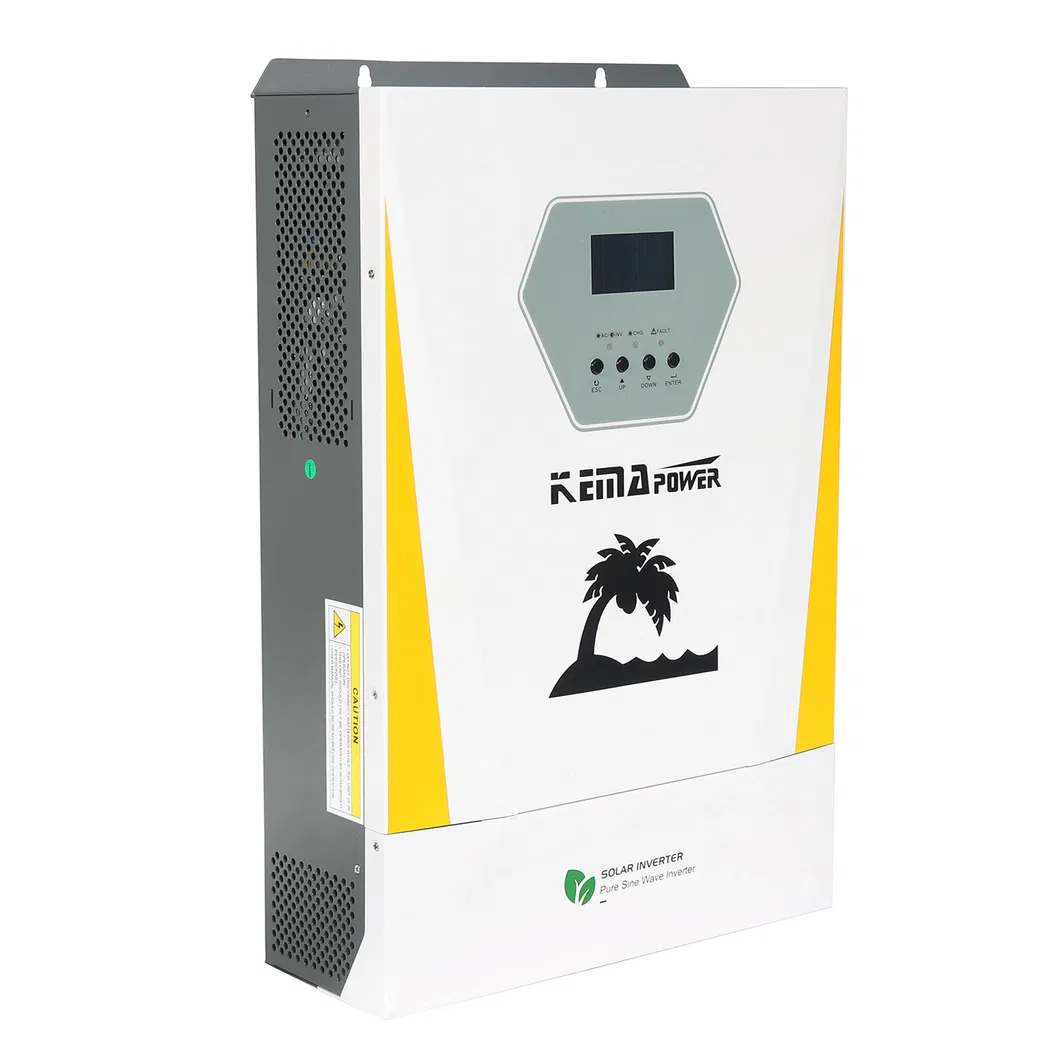

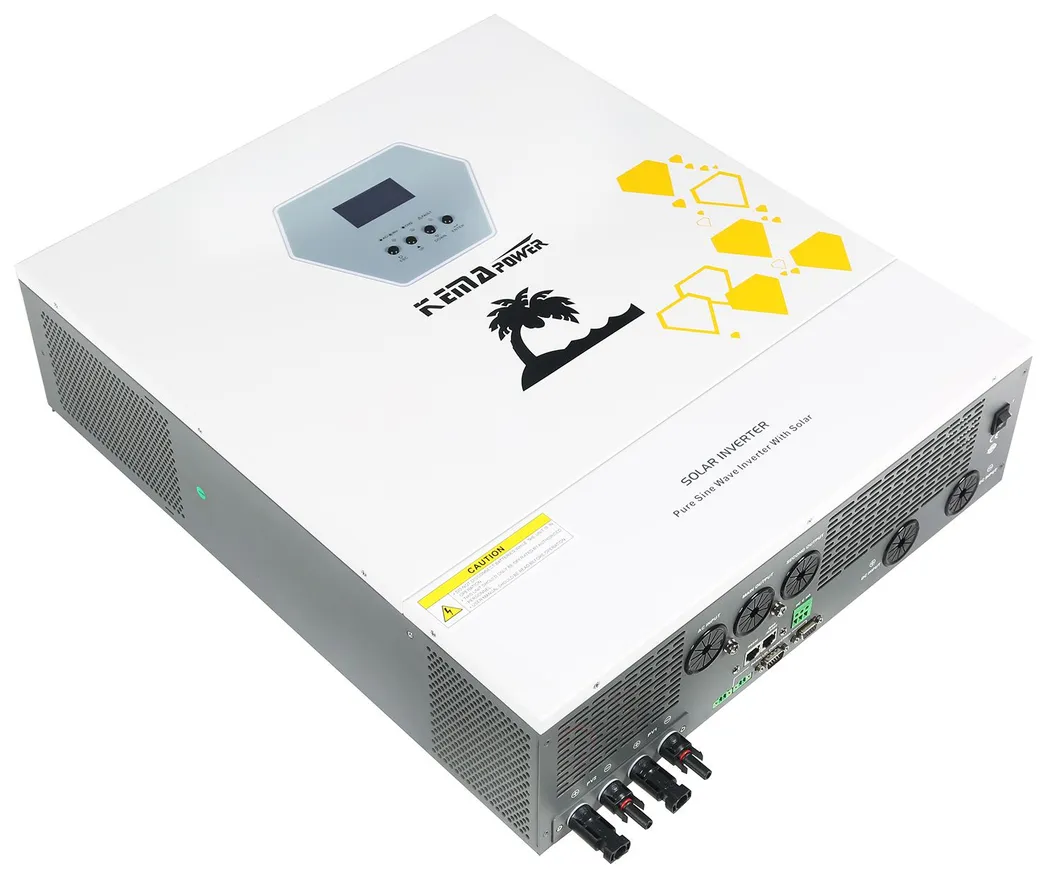

🖼️ PRODUCT DISPLAY

❓ Frequently Asked Questions (FAQ)

Q1: Can this hybrid inverter work without a battery? A: Yes, this high-frequency off-grid hybrid inverter is designed to work without a battery during the daytime by utilizing solar power directly.

Q2: What is the maximum number of units that can be connected in parallel? A: For the 6.2KW and 11KW models, you can parallel up to 9 units for expanded power capacity.

Q3: Does the inverter support lithium batteries? A: Yes, it features adjustable charge current and voltage settings, specifically supporting both Lead-acid and Lithium batteries, including lithium activation wake-up.

Q4: What are the primary communication options available? A: The inverter supports RS232, BMS/RS485, and Dry Contact communication. There are also WiFi or GPRS options for mobile app monitoring.

Q5: Is the output wave suitable for sensitive electronics? A: Yes, it provides a pure sine wave output, which is safe and suitable for all types of loads, including sensitive personal computers and home appliances.

Q6: What is the peak efficiency of the solar charging system? A: The system achieves a peak efficiency of 97% from PV to Inverter and 94% from Battery to Inverter.
