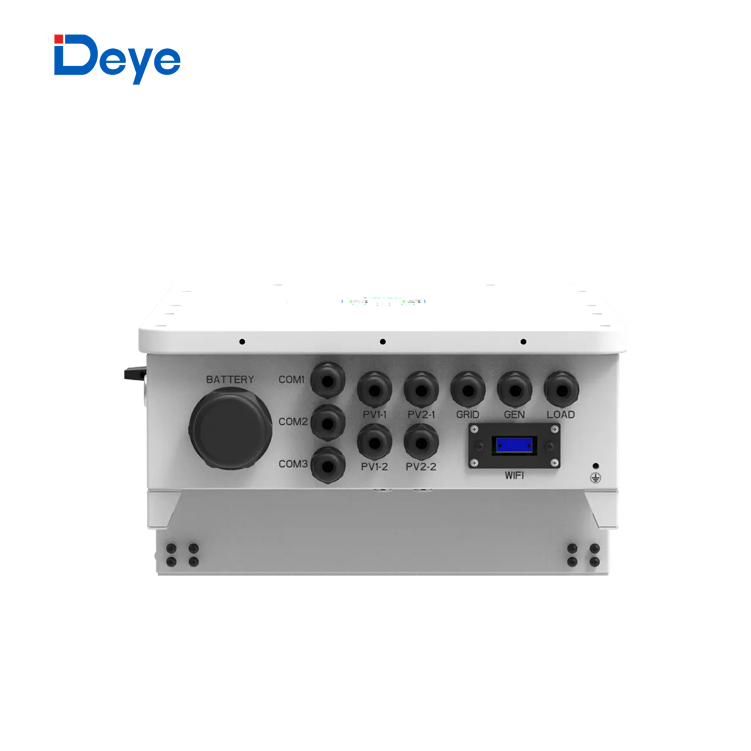

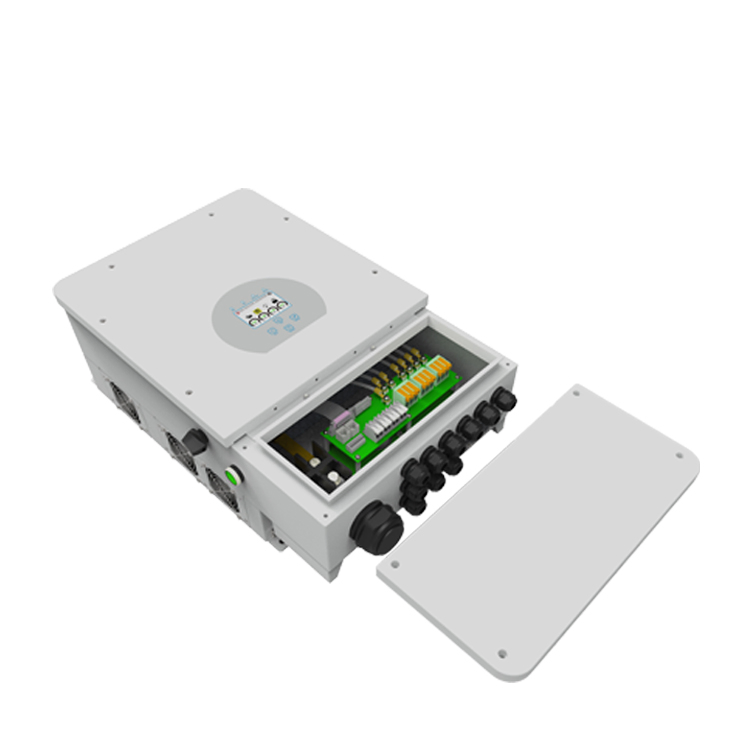

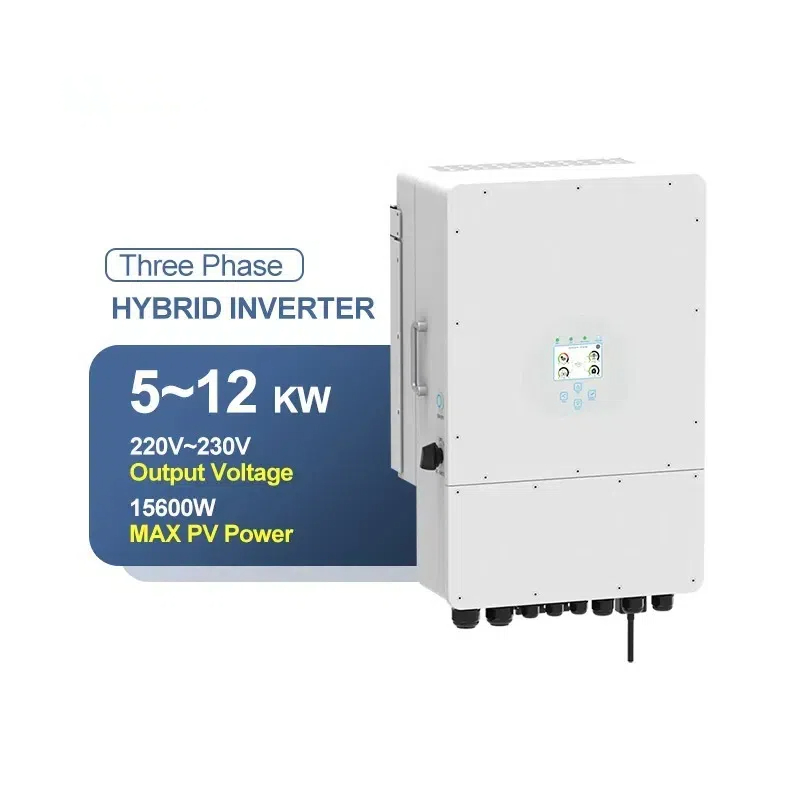

China Deye Hybrid Solar Inverter 5kw 8kw 10kw 12kw Wholesale Solar Inverter Solar Energy Storage Three Phase Hybrid Solar Inverter for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

📊 Overview & Basic Info

Model NO.

SUN-5/6/8/10/12K-SG04LP3

Nature of Source Flow

Active Inverter

Phase

Three Phase

Output Power

>1000W

Certification

CE, ISO9001, TUV

Power Source

Solar Power

Battery Type

Lead-Acid or Lithium-Ion

Battery Voltage Range

40-60V

Protection Degree

IP65

Production Capacity

2000PCS/Week

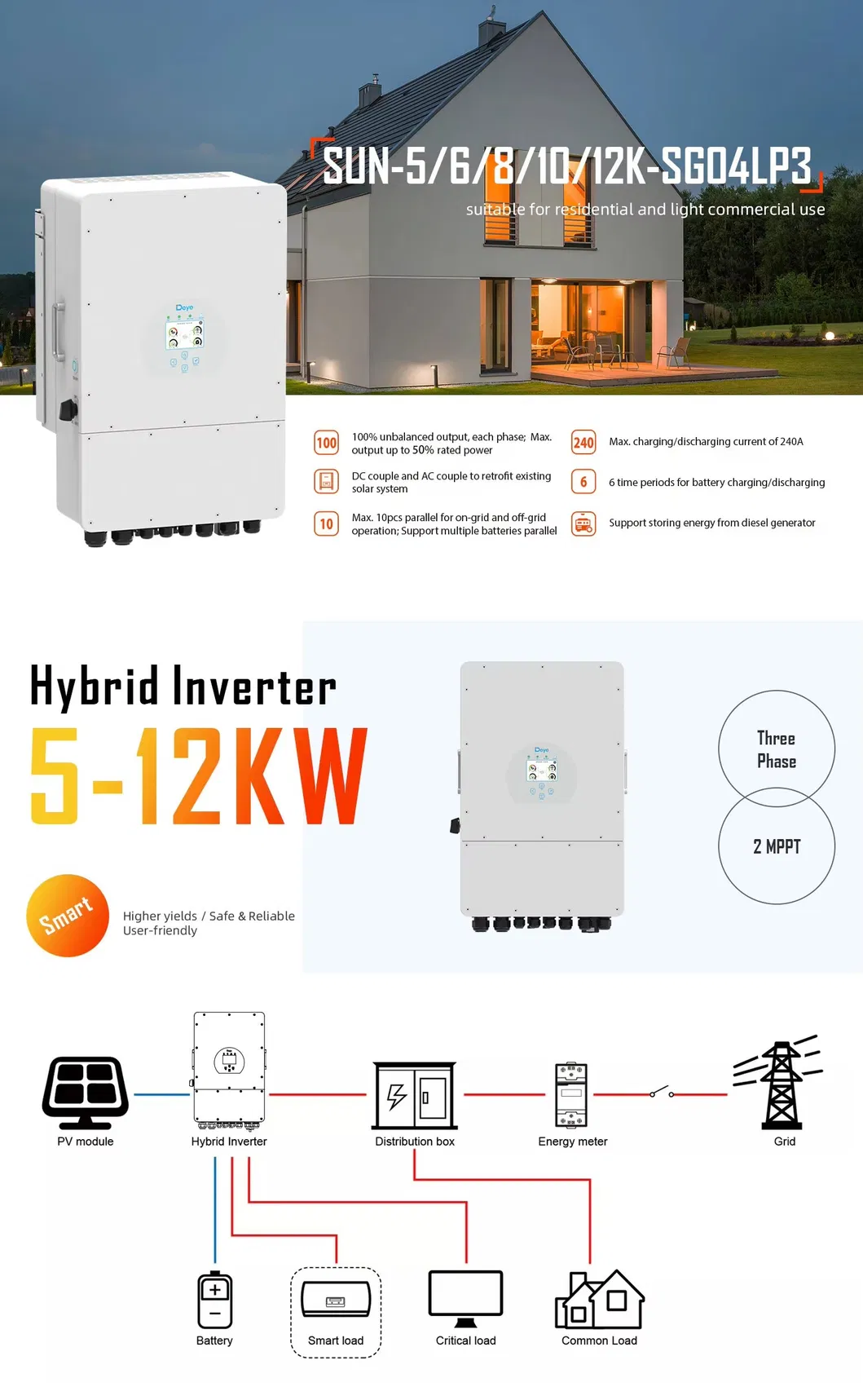

⚡ Product Description

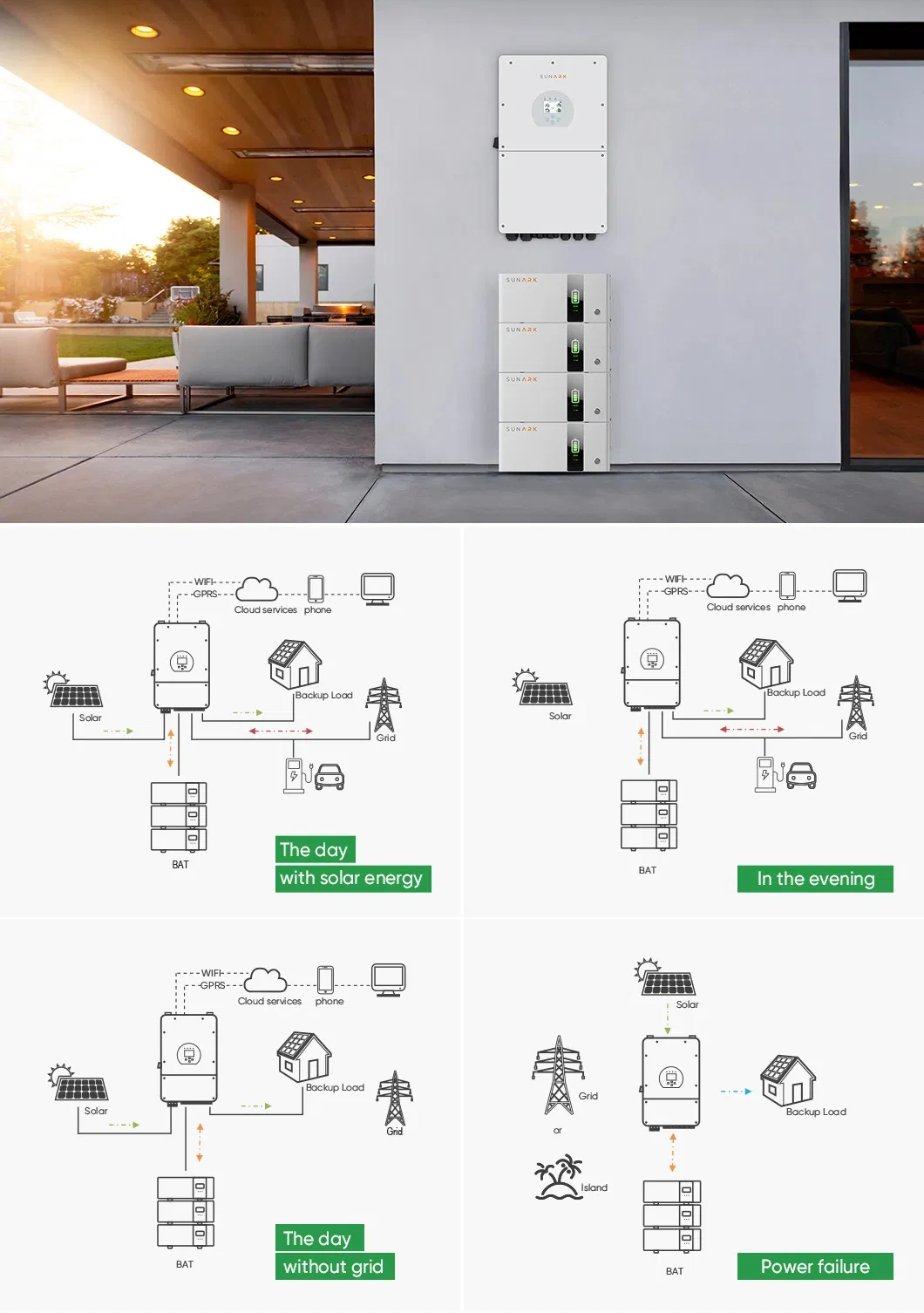

📋 Product Parameters

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Voltage Range (V)	40-60V
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. Discharging Current (A)	120A	150A	190A	210A	240A
PV String Input Data
Max. DC Input Power (W)	6500W	7800W	10400W	13000W	15600W
Rated PV Input Voltage (V)	550V(160V~800V)
MPPT Range (V)	200V-650V
AC Output Data
Rated AC Output Power (W)	5000W	6000W	8000W	10000W	12000W
Max. AC Output Power (W)	5500W	6600W	8800W	11000W	13200W
Peak Power (off grid)	2 times of rated power, 10 S
Efficiency & General
Max. Efficiency	97.6%
Operating Temp (ºC)	-45~60ºC
Warranty	5 years

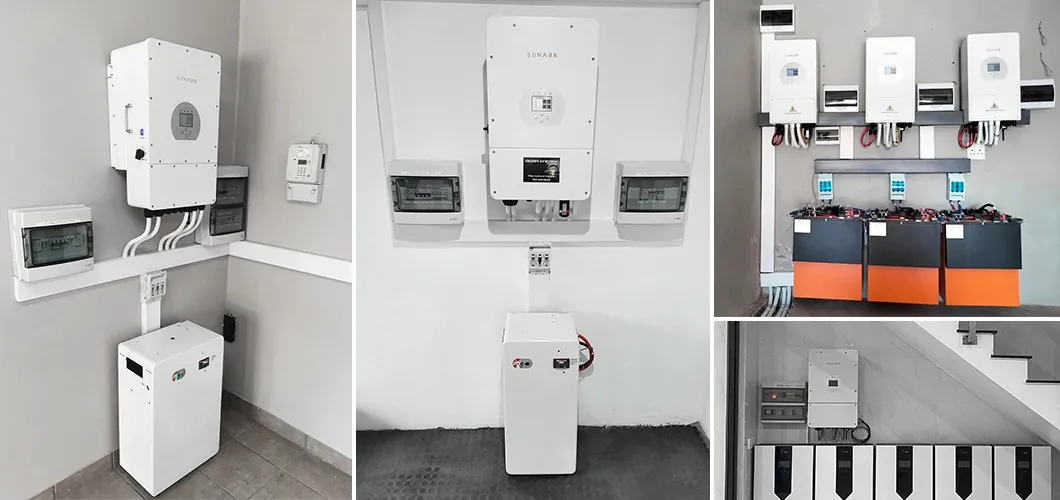

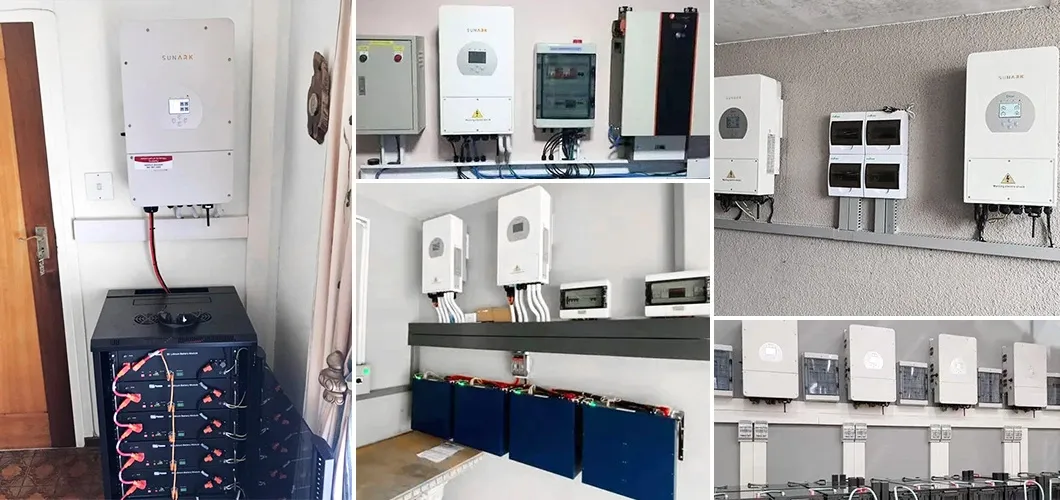

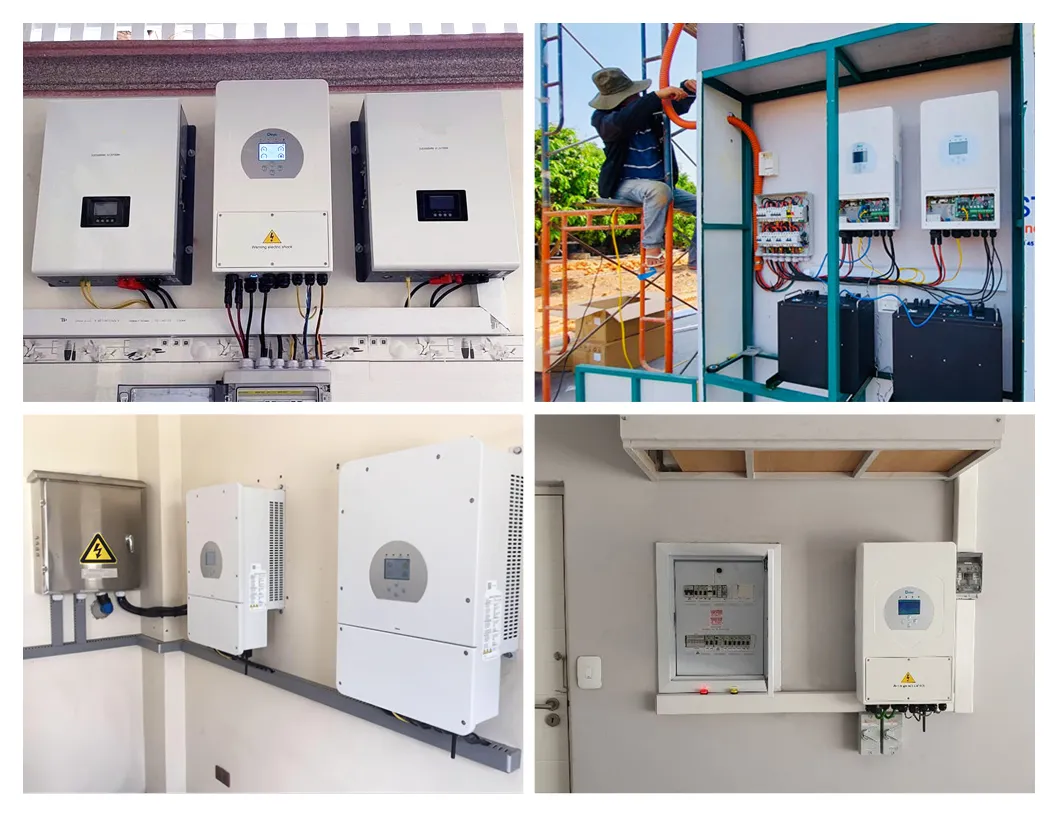

🏠 Project Case

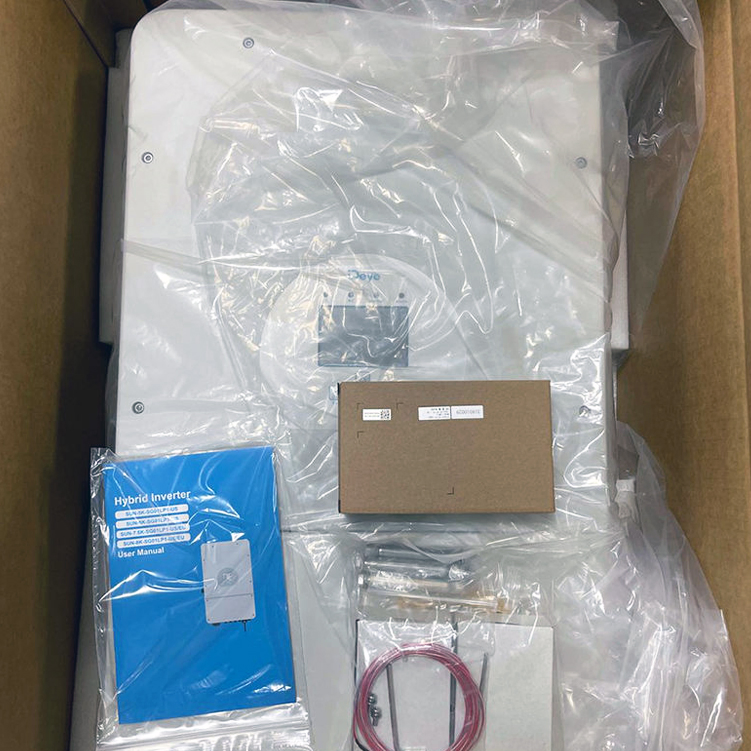

📦 Packaging & Shipping

Package Size

45.00cm * 70.00cm * 30.00cm

Gross Weight

40.000kg

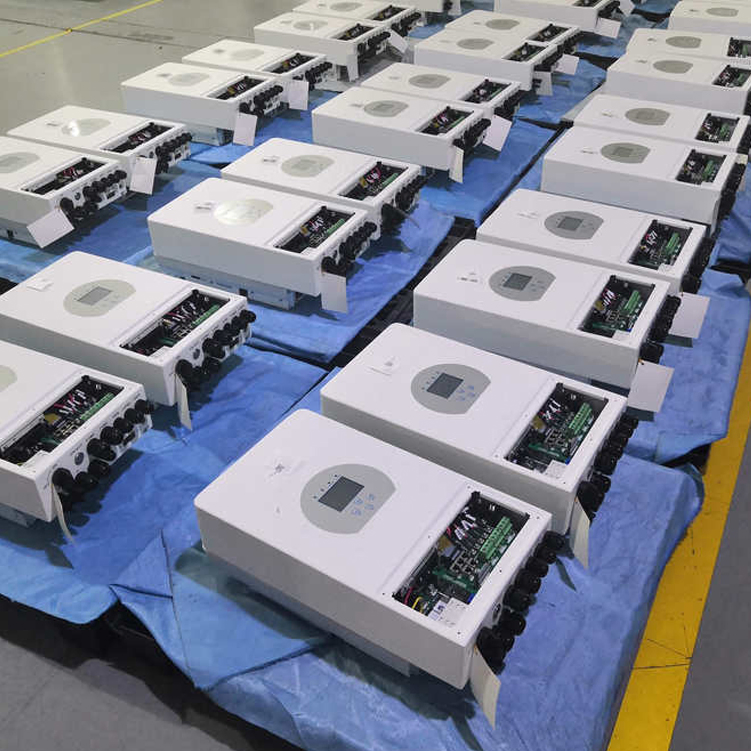

🏭 Manufacturing Facility

❓ Frequently Asked Questions

1. What types of batteries are compatible with this hybrid inverter?

The inverter supports both Lead-acid and Lithium-ion batteries with a voltage range of 40-60V.

2. Does this inverter support three-phase power systems?

Yes, it is specifically designed for three-phase grid types (3L/N/PE 220/380Vac, 230/400Vac).

3. What is the maximum efficiency of the unit?

The inverter achieves a maximum efficiency of 97.6% and an MPPT efficiency of 99.9%.

4. Is the inverter suitable for outdoor installation?

Yes, it comes with an IP65 protection degree, making it highly resistant to dust and water ingress.

5. What is the standard warranty period for this product?

This hybrid solar inverter comes with a standard 5-year warranty.

6. How does the cooling system work?

The unit utilizes a smart cooling system to maintain optimal operating temperatures between -45ºC and 60ºC.
