Wing Solar
Wing Solar

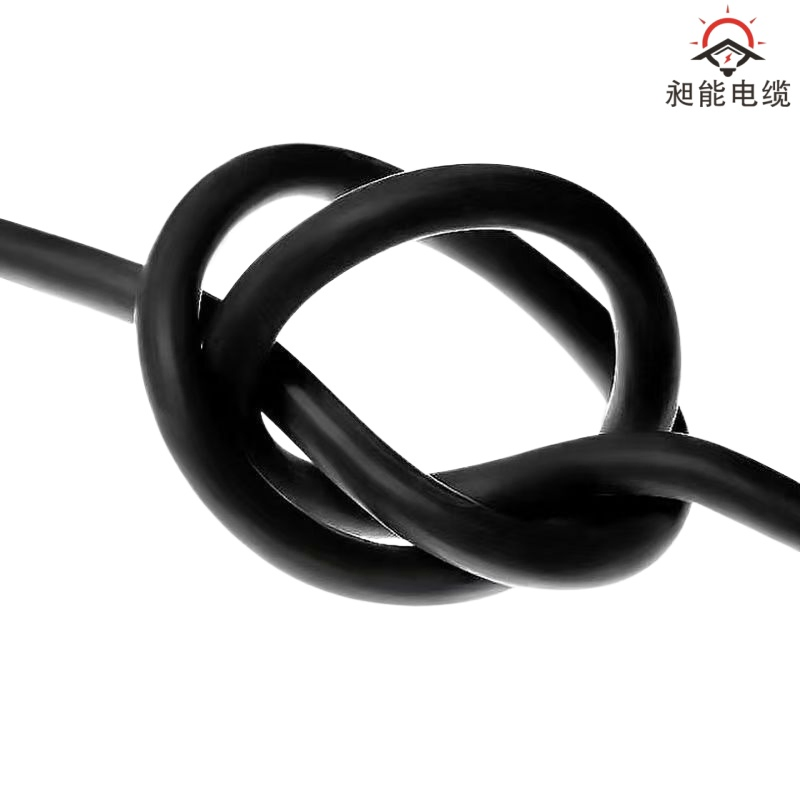

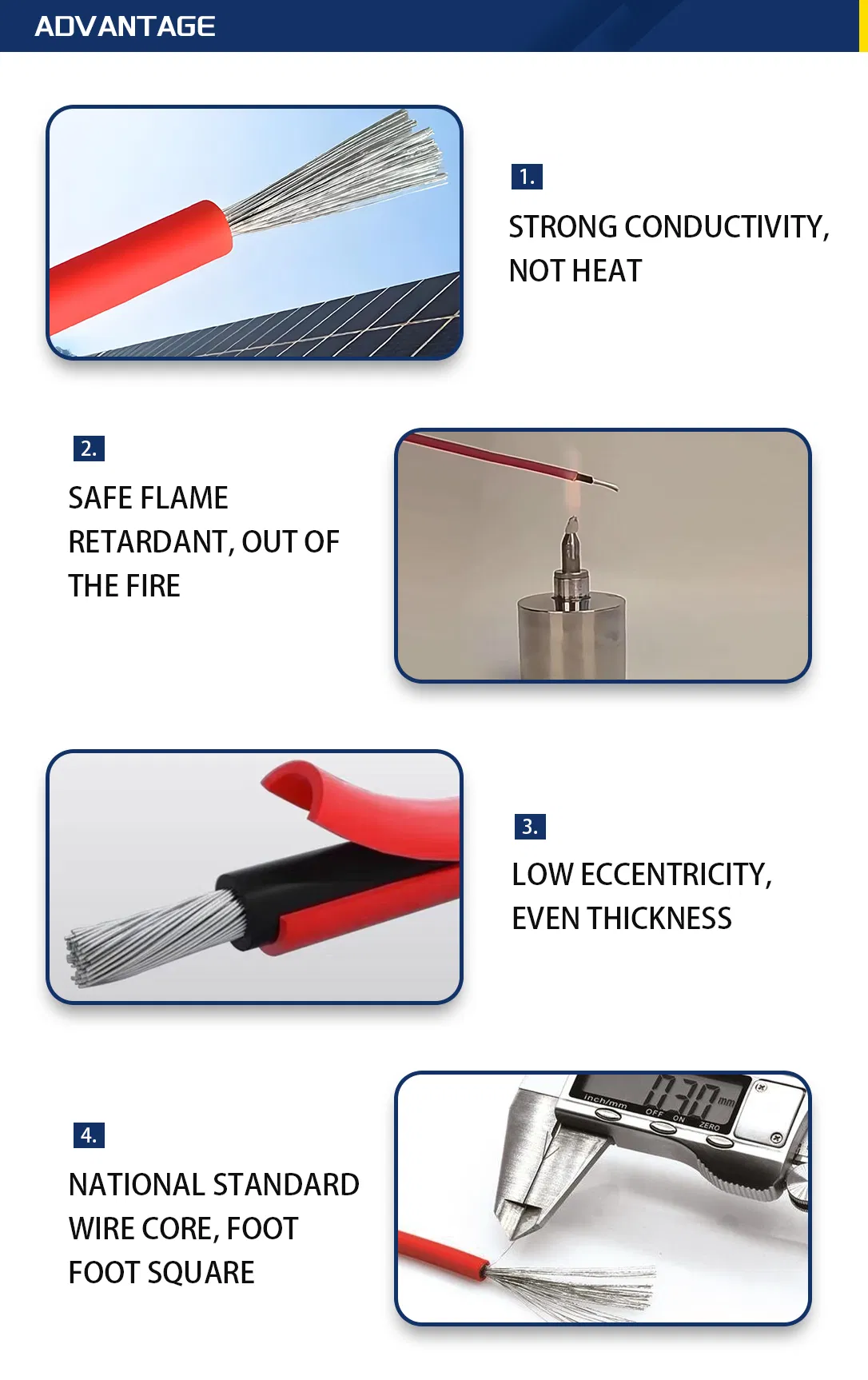

Strong bending resistance with strict control of finished product quality, ensuring high flexibility for various installations.

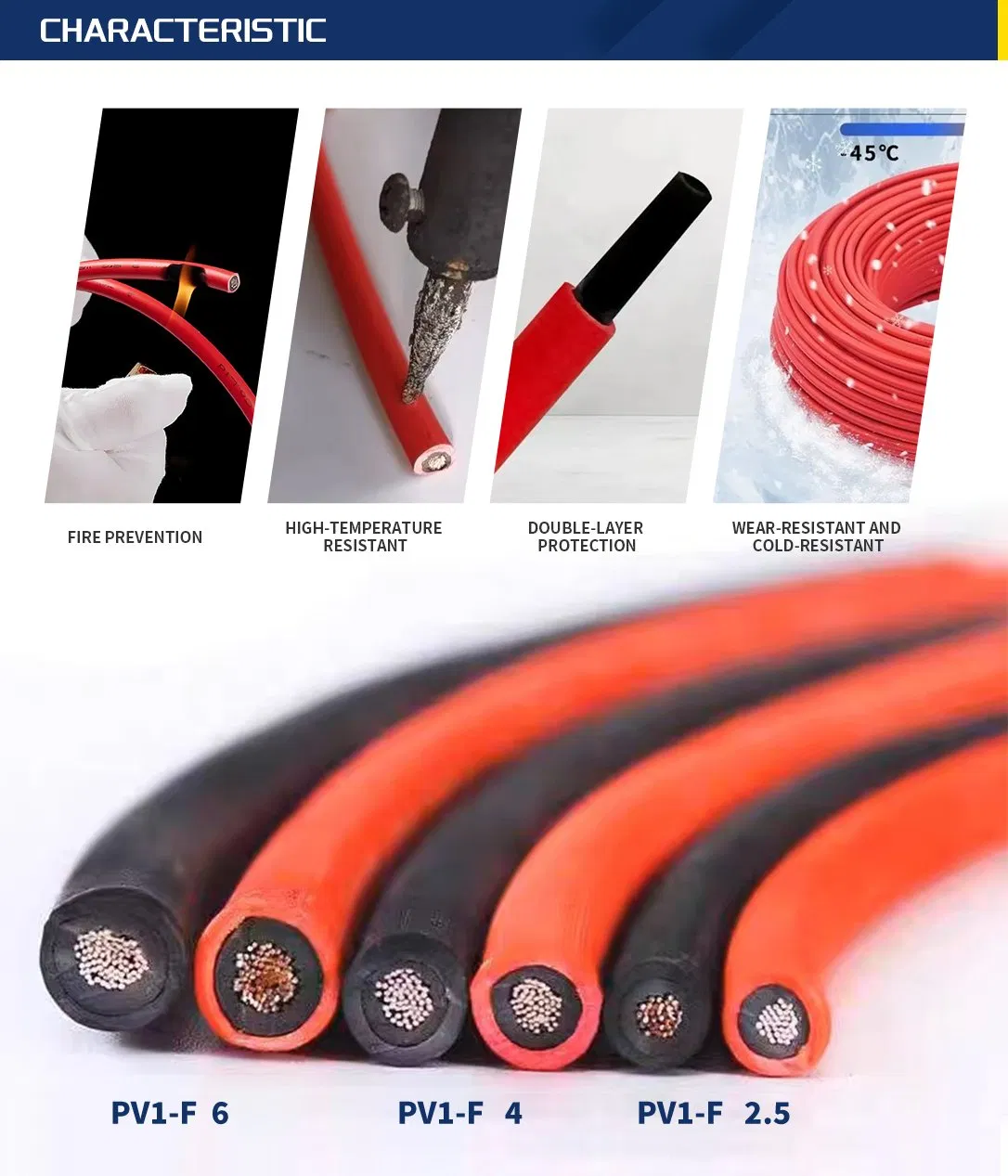

Features ultraviolet resistance, flame retardant properties, and aging resistance. Service life exceeds 25 years.

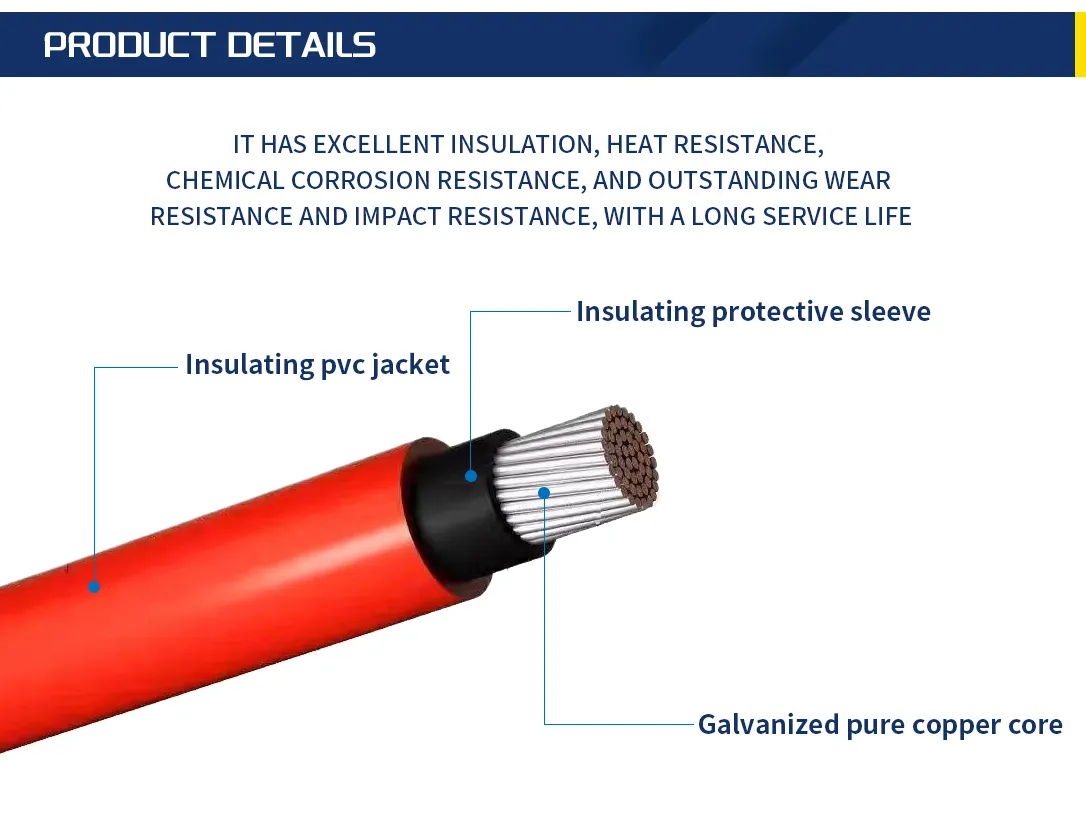

High strength and corrosion resistance. Low eccentricity ensures uniform insulation thickness to prevent electrical breakdown.
| Parameter | Details |
|---|---|

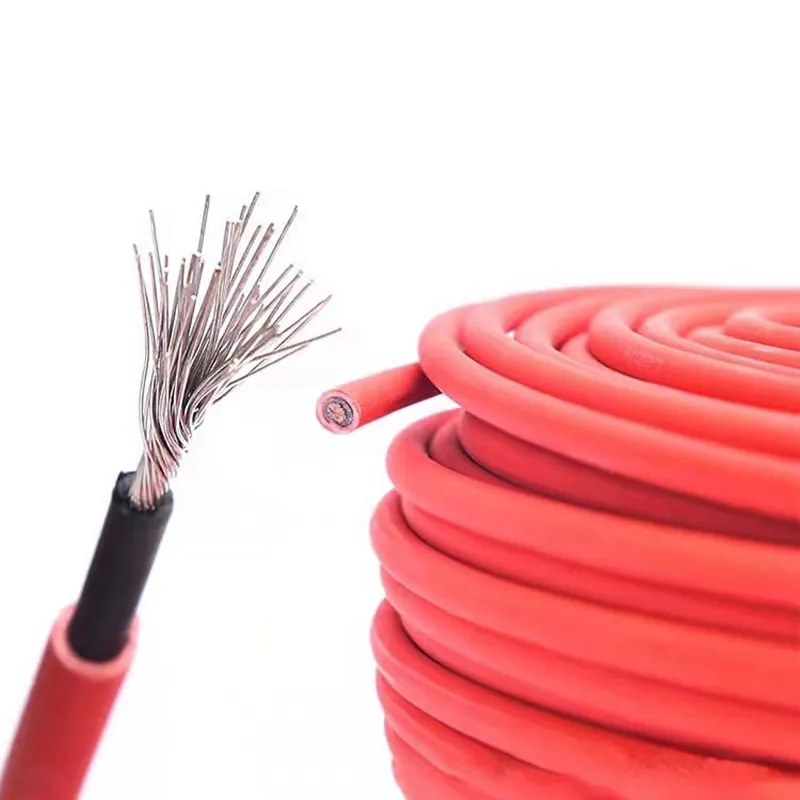

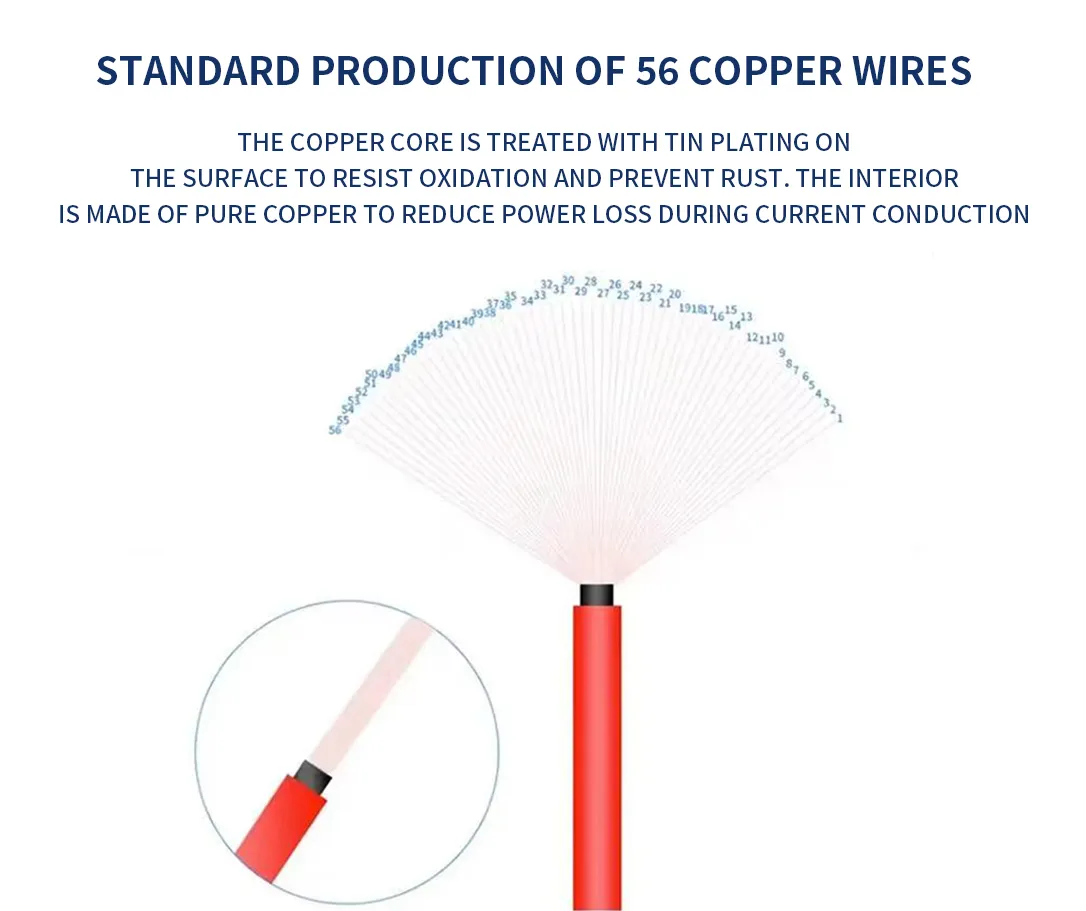

| Conductor | High-purity Class 5 stranded tinned copper wires |
| Insulation | PVC |
| Core | Multi-core |
| Cross Section | 1.5 / 2.5 / 4 / 6 / 10 / 16 / 25 mm² |
| Application | Cables specifically designed for solar photovoltaic systems |
| Cross Section (n×mm²) | Conductor (mm) | Outer (mm) | Current Capacity [A] at 60ºC | Resistance kΩ/km at 20ºC |
|---|---|---|---|---|
| 1×1.5 | 1.4 | 4.2 | 30 | 13.7 |
| 1×2.5 | 1.8 | 5 | 42 | 8.21 |
| 1×4.0 | 2.2 | 5.2 | 55 | 5.09 |
| 1×6.0 | 2.8 | 5.8 | 70 | 3.39 |
| 1×10.0 | 4.0 | 7.5 | 98 | 1.95 |
| 1×16.0 | 5.0 | 8.9 | 132 | 1.24 |
| 1×25.0 | 6.2 | 10.9 | 176 | 0.795 |
